Cloudonix Integration

Overview

Cloudonix is a cloud communications platform that enables Talkr voice agents to connect to SIP communications platform, either on-premise or in the cloud. In addition, Cloudonix exposes a full set of voice APIs, that provide a full suite of call-control capabilities and more.

Prerequisites

Before setting up Cloudonix integration, you'll need:

• A Cloudonix account
• A Cloudonix domain UUID (or the domain name)
• A Cloudonix domain API Key (Bearer Token)
• A Cloudonix Voice Application on that domain (optional — leave the field blank in Talkr and we'll auto-create one for you on save, with the application url pre-set)
• A Cloudonix outbound voice trunk service provider connection
• Talkr AI instance running and accessible

Configuration

Step 1: Get Cloudonix Credentials

1. Log in to your Cloudonix Console

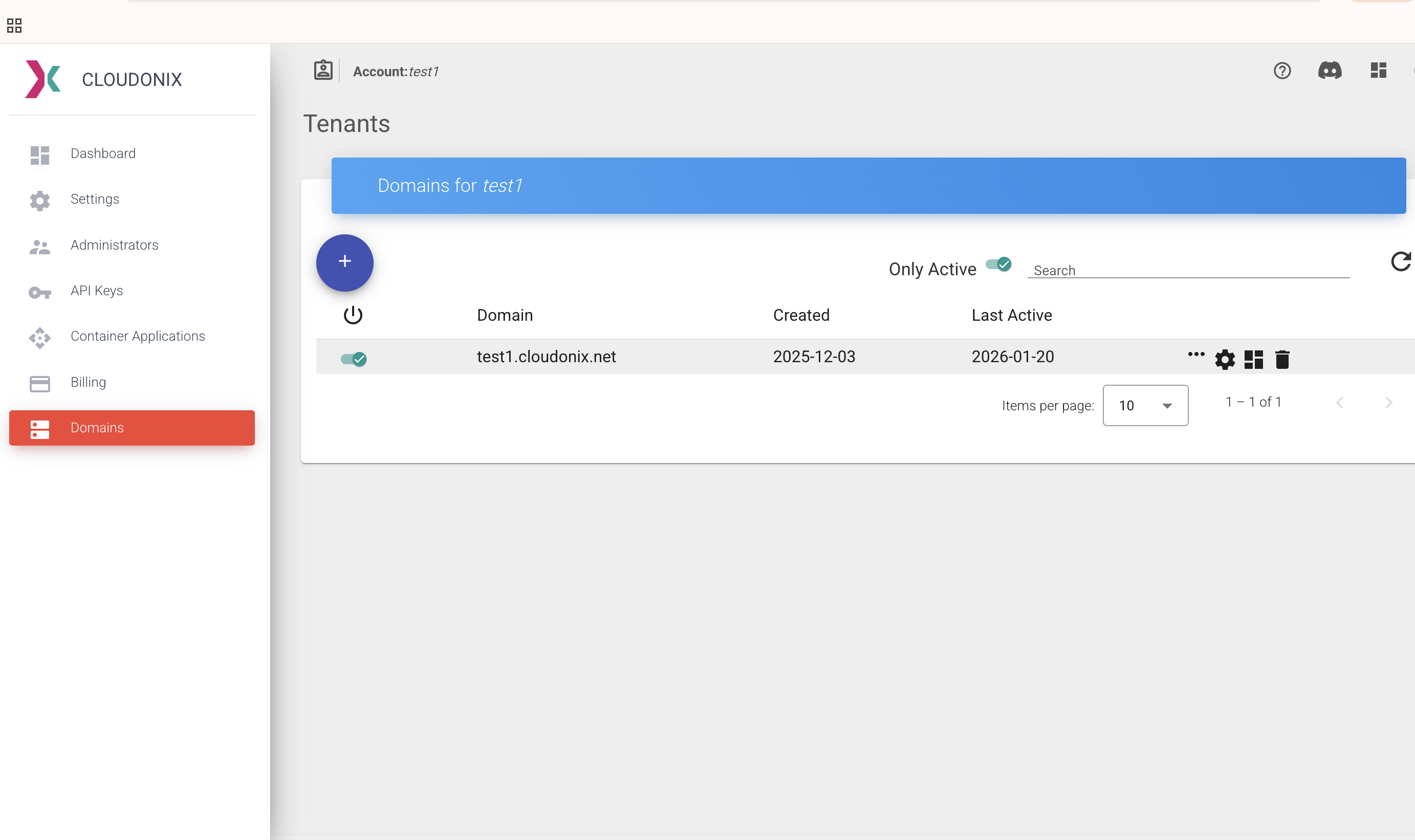

2. Find your Domain ID (UUID or domain name) and Bearer Token (Domain API Key) on the dashboard
3. (Optional) Navigate to your domain's Applications and create (or open) the application you'll use with Talkr, then copy its Application Name. Skip this if you want Talkr to auto-create the Voice Application for you on save.

Step 2: Configure in Talkr AI

1. Navigate to /telephony-configurations and click Add configuration

2. Select Cloudonix as your provider

3. Enter your credentials:

   • Bearer Token
   • Domain ID
   • Application Name — optional. Leave blank and Talkr will auto-create a Voice Application on save (with the application url and CXML runtime already configured) and store its name on this configuration.

4. Click Save Configuration

5. Open the configuration you just created and add at least one phone number (with country code, in E.164 format — + then country code then number, no spaces or dashes, e.g. +1234567890). The default caller ID is used for outbound calls.

   If Talkr auto-created the Voice Application for you, you still need to bind your DNIDs to that application in the Cloudonix cockpit (see Step 2 of Inbound Calling Setup). The auto-created application is named talkr-<random> — its name is shown on the saved configuration.

Step 3: Test Your Configuration

1. Create a test workflow
2. Click "Call" to verify connection
3. Check call logs for successful connection

Inbound Calling Setup

Cloudonix routes inbound calls per Voice Application — the webhook URL is set once on the application, and applies to every DNID bound to it. When you save an inbound workflow on a phone number, Talkr automatically pushes the webhook URL to your Voice Application's url (provided the credentials are correct), so you don't need to set the webhook by hand. If Talkr auto-created the application during configuration save, the url is already set and this push is a no-op — you only need to bind your DNIDs to the auto-created application.

Step 1: Set Up the Inbound Trunk

1. Log in to your Cloudonix Console

2. Navigate to Trunks → Create Inbound Trunk and configure your inbound trunk with your voice service provider



Step 2: Create the Voice Application and Link DNIDs

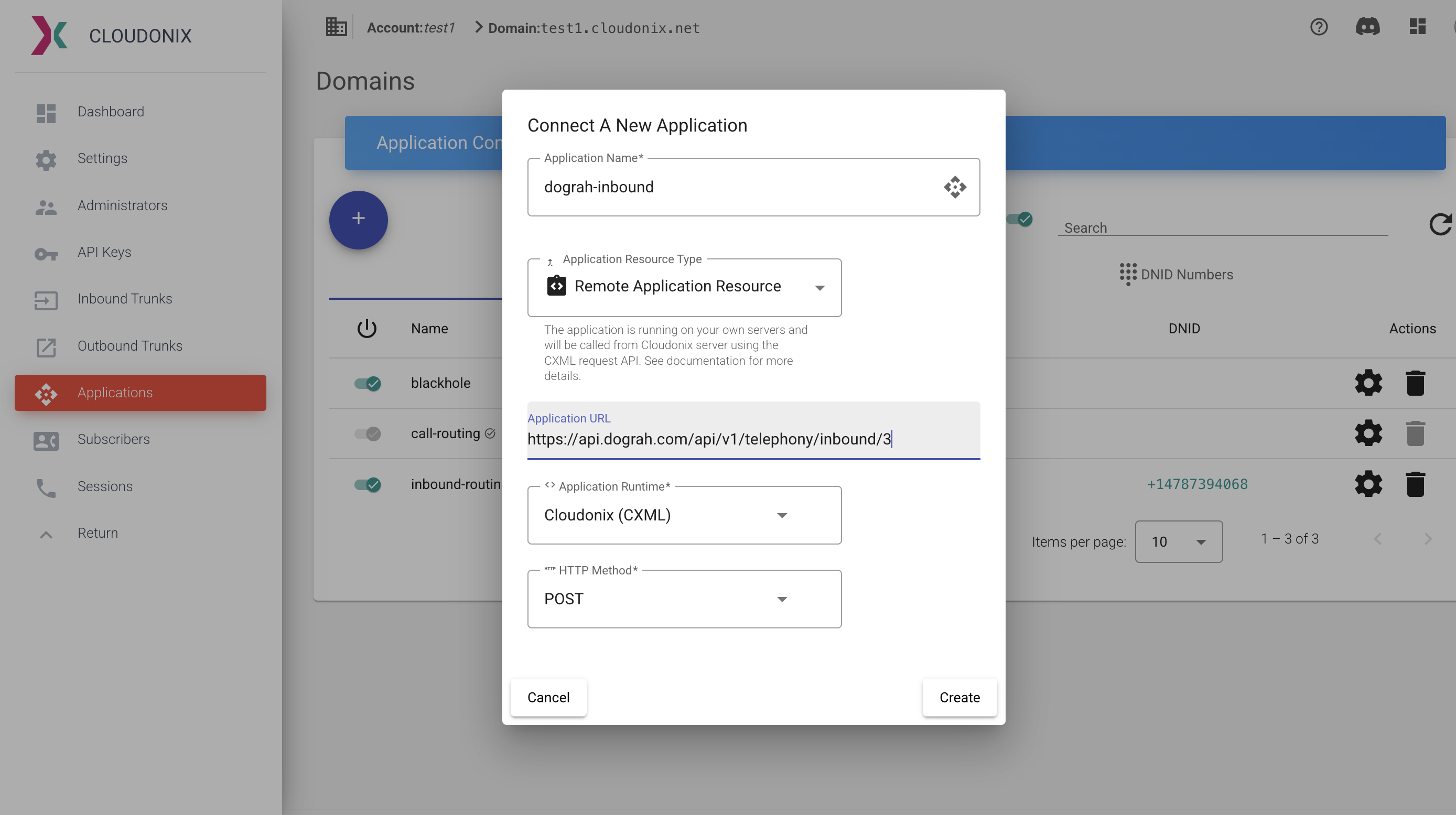

1. In the Cloudonix cockpit, select your domain and navigate to Applications

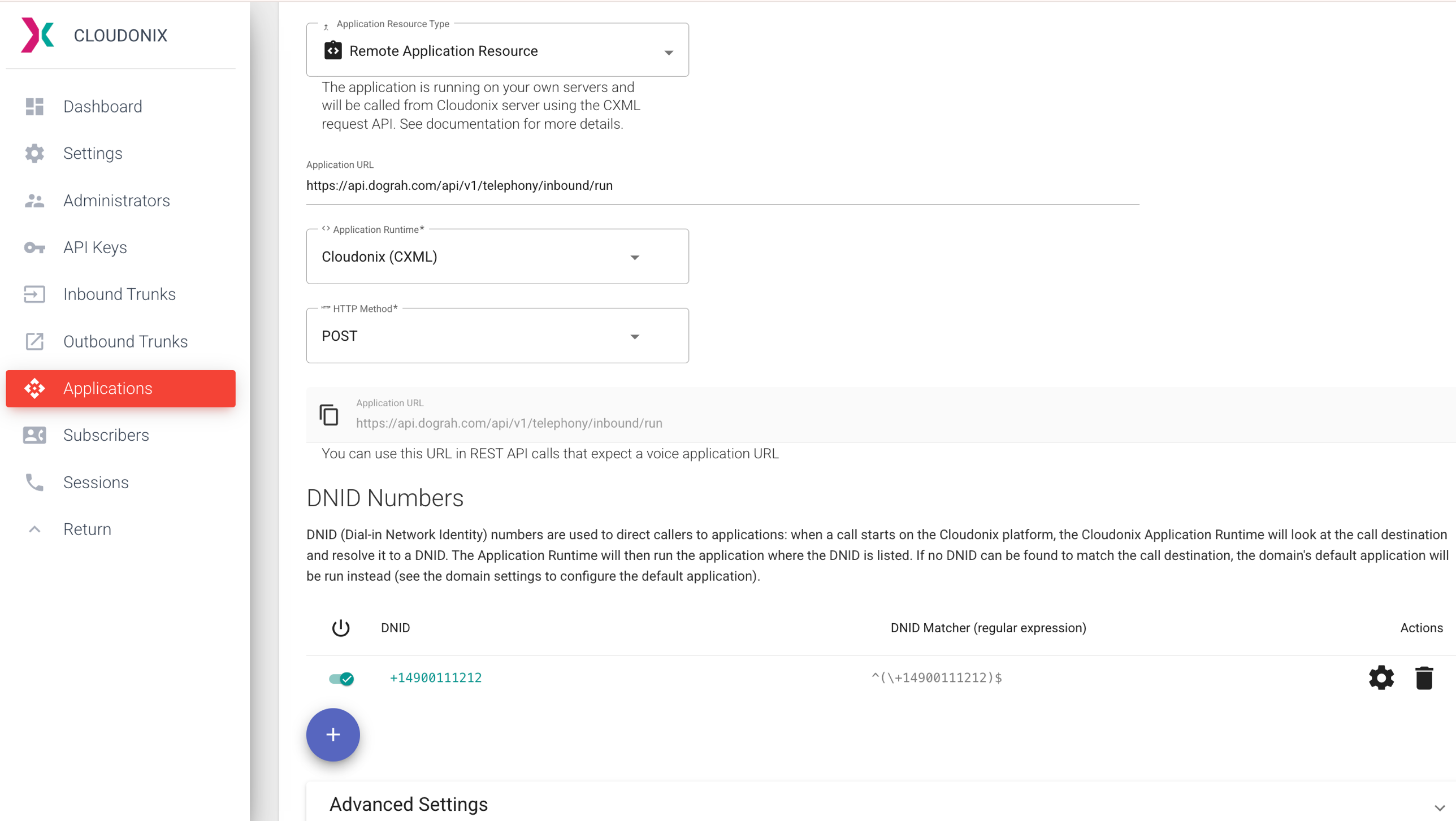

2. Create a new application (or open the existing one whose name you configured in Talkr) with these settings:

   • Application Resource Type: Remote Application Resource
   • Application Runtime: Cloudonix (CXML)
   • Application URL: https://talkr.intelstacks.com/api/v1/telephony/inbound/run
   • HTTP Method: POST

3. Under DNID Numbers, add each phone number (DNID) you want to route through this application

4. Save

   The Application URL is what Talkr's auto-push updates in Step 3 — you can leave it blank during creation and let the auto-push fill it in, or paste the URL above so the application is usable immediately. Either works. Self-hosted Talkr deployments use their backend domain in place of talkr.intelstacks.com.



Step 3: Assign an Inbound Workflow to the Phone Number in Talkr

1. Go to /telephony-configurations and open your Cloudonix configuration
2. In the Phone numbers section, edit the number that should receive inbound calls
3. Set its Inbound workflow to the agent that should answer
4. Save

Step 4: Verify the URL on the Voice Application

1. Open your Cloudonix cockpit and navigate to your domain's Applications

2. Open the application whose name you configured in Talkr

3. Confirm:

   • URL is set to: https://talkr.intelstacks.com/api/v1/telephony/inbound/run
   • Method is POST
   Talkr pushed this URL automatically when you saved the inbound workflow in Step 3. The same URL is shared across every DNID bound to that application — Talkr routes each inbound call to the right agent based on the called number's inbound workflow assignment. If the field is empty, shows a different URL, or Talkr surfaced a sync warning on save, the auto-push failed — most often because the Bearer Token, Domain ID, or Application Name in Talkr is incorrect. Paste the URL into the field yourself, set the method to POST, and save. On self-hosted Talkr, replace talkr.intelstacks.com with your backend domain.



Step 5: Verify Setup

• Ensure your Talkr AI instance is publicly accessible
• Verify any firewalls allow Cloudonix's IP ranges
• Confirm your inbound trunk is active and receiving calls

Test Inbound Calling

1. Call your configured phone number from another phone
2. Verify your Talkr AI voice agent answers and responds
3. Check call logs in both Talkr AI dashboard and Cloudonix Console
4. Confirm clear two-way audio communication

Troubleshooting

Best Practices

• Test your configuration with a single call before running campaigns
• Monitor Cloudonix Sessions for usage
• Use a dedicated Voice Application for Talkr so the shared url doesn't conflict with other systems
